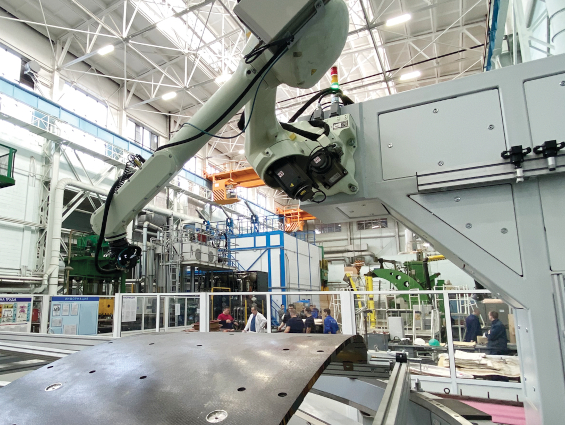

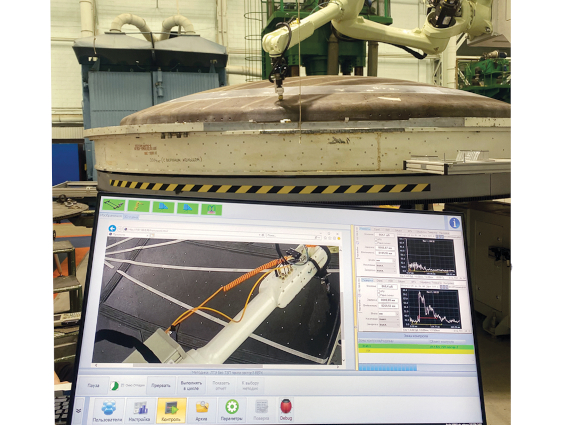

  • Overview: The stend of laser scanning and flaw detection ROBOSKOP VTM-5000 AEROSPACE is designed for non-destructive testing of composite materials, honeycomb structures and heat-shielding coatings, used in the space industry.

FEATURES ROBOSKOP VTM-5000 AEROSPACE

Testing of space composite parts industries

The stend of laser scanning and flaw detection ROBOSKOP VTM-5000 AEROSPACE is designed for non-destructive testing of composite materials, honeycomb structures and heat-shielding coatings, used in the space industry.

Testing techniques:

  • measuring;

  • impedance;

  • ultrasonic echo-shadow;

Full control of components, used in rocket science includes a set of methods to enable detection of defects in the layers of composite skins and in adhesive joints of power elements with heat shield.

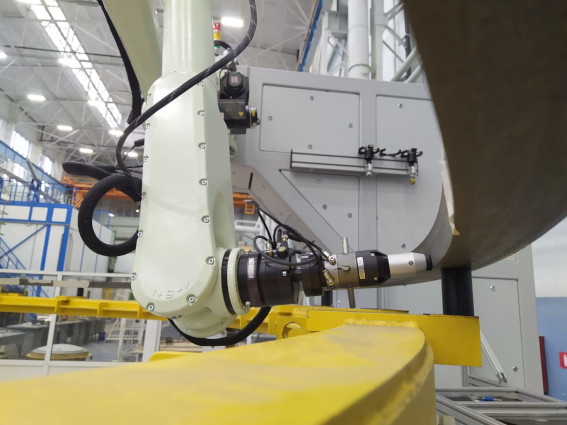

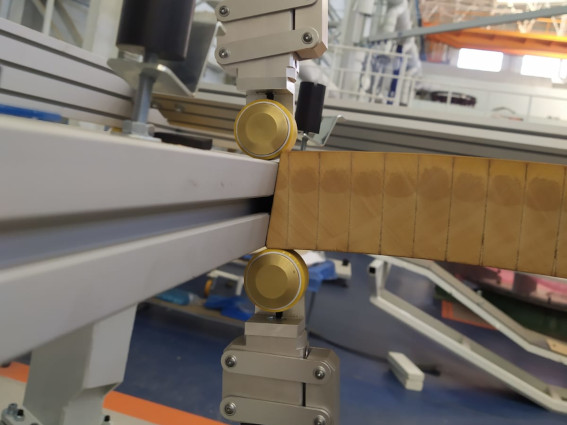

Application of two synchronously moving robots in echo-shadow mode will allow you to «enlighten» multi-layer layer up to 130 mm thick and reveal structural anomalies when bonding composite materials and heat-shielding coatings.

Used probes:

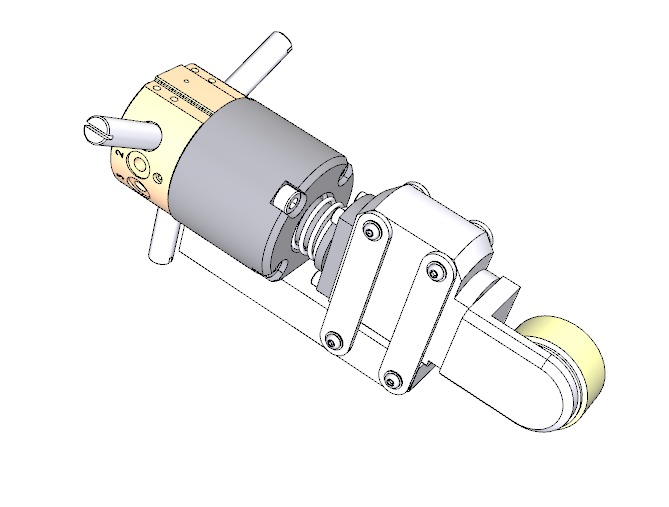

Ultrasonic echo-shadow transducer P-111-0.6-K10 for ultrasonic control

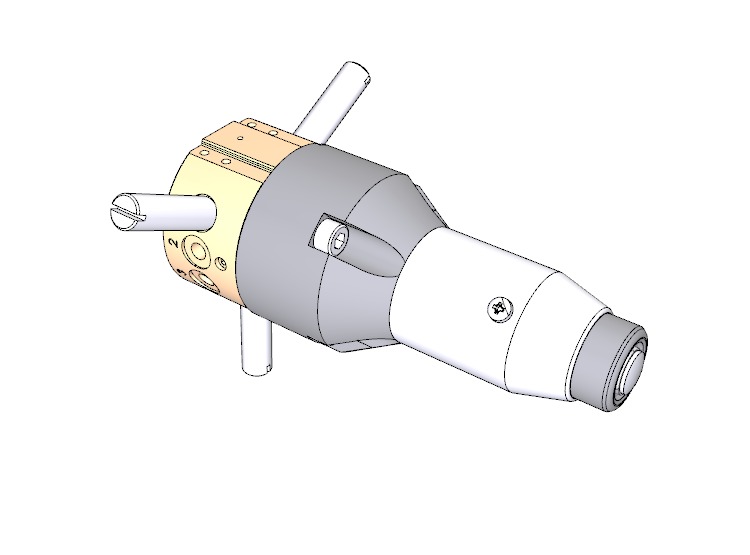

Combined transducer PADI-8-SU for impedance control method

Separate-combined transducer PADI-40-RS for impedance control method

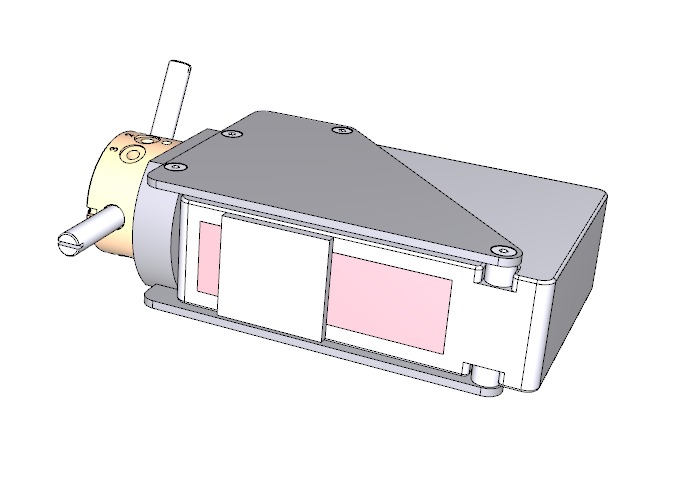

Laser measuring



  • image_with_video

    ROBOSKOP VTM-5000 AEROSPACE

    The stend of laser scanning and flaw detection ROBOSKOP VTM-5000 AEROSPACE is designed for non-destructive testing of composite materials, honeycomb structures and heat-shielding coatings, used in the space industry.
  • image_with_video

    ROBOSKOP VTM-5000 HELICOPTERS

    The laser scanning and flaw detection bench ROBOSCOP VTM-5000 HELICOPTERS is designed for the non-destructive testing of polymer-composite materials used in aircraft constructions: glider elements, helicopter blades, honeycomb panels It is also applicable in wind power engineering, small-sized shipbuilding, pipe fitting production, etc. All tooling (laser scanner, sensors) selection and change processes are automated.
  • image_with_video

    ROBOSKOP VTM-5000 RAILWAY

    ROBOSKOP VTM-5000 RAILWAY Is applied for complex non-destructive testing of railway rolling stock (trams, subway cars, freight and passenger cars, motor-rolling stock) wheelsets. A flexible system of settings allows to make any test sequence while using both mandatory and auxiliary (confirming) NDT methods for selective test of individual zones.
  • image_with_video

    FAZAR 01

    SINGLE-CUT RAIL ULTRASONIC PHASED ARRAY FLAW DETECTOR (PA) Is used for continuous ultrasonic inspection of one track rail of railway rails of all types (U50, U65, U75, UIC53, UIC60, etc.) along the entire length and cross-section of rails points with semi-automatic decoding of defects,including control of rail base blades.
  • FAZAR 02

    DUBLE-CUT RAIL ULTRASONIC PHASED ARRAY FLAW DETECTOR (PA) Is used for continuous ultrasonic inspection of railway rails of all types (U50, U65, U75, UIC53, UIC60, etc.) along the entire length and cross-section of rails points with semi-automatic decoding of defects,including control of rails base blades.
  • image_with_video

    KALMAR 32+

    MOBILE SINGLE-CUT RAILPHASED ARRAY FLAW DETECTOR (PA) Designed for acceptance or routine ultrasound control welded joints of electrocontact and alumothermite welding of railway railsof mainline and industrial tracks, as well as metro
  • image_with_video

    KALMAR 32+ RWE

    STATIONARY RAIL FLAW DETECTOR ON PHASED ARRAY (PA) FOR RAIL WELDING ENTERPRISE (RWE) Designed for acceptance ultrasonic inspection of welded joints of electric contact welding of railway rails in the conditions of rail welding enterprises
  • TOMOGRAPHIC 5M

    MULTIFUNCTIONAL FLAW DETECTOR TOMOGRAPH Has built-in support for multidisciplinary scanners: tomographic, optical, railway purpose, etc. Such functionality is in demand by NDT laboratories for the control of welded joints, fitting pipe, various metal structures and composite materials.
  • image_with_video

    DAMI C-09

    MECHANICAL IMPEDANCE ANALYSIS FLAW DETECTOR Is intended for detection of laminations, discontinuities, defects of lack-of-adhesion type and other continuity faults in multi-layer polymeric composite materials (PCM).
