ROBOSKOP VTM-5000 RAILWAY

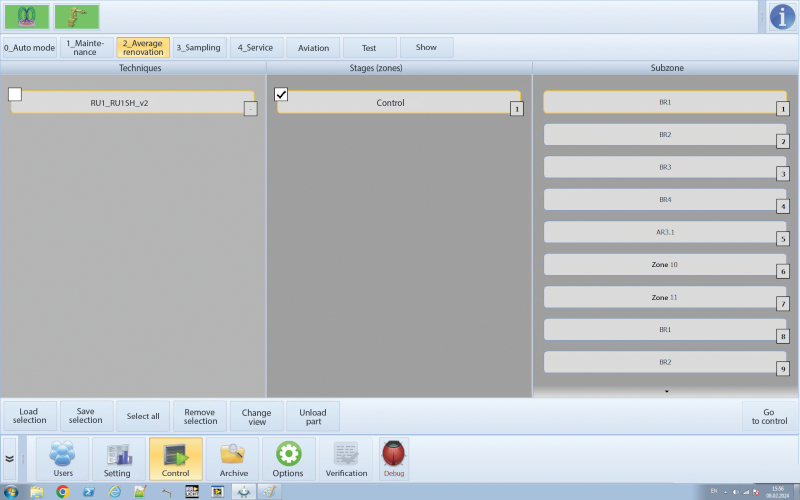

Overview: ROBOSKOP VTM-5000 RAILWAY Is applied for complex non-destructive testing of railway rolling stock (trams, subway cars, freight and passenger cars, motor-rolling stock) wheelsets. A flexible system of settings allows to make any test sequence while using both mandatory and auxiliary (confirming) NDT methods for selective test of individual zones.

FEATURES ROBOSKOP VTM-5000 RAILWAY

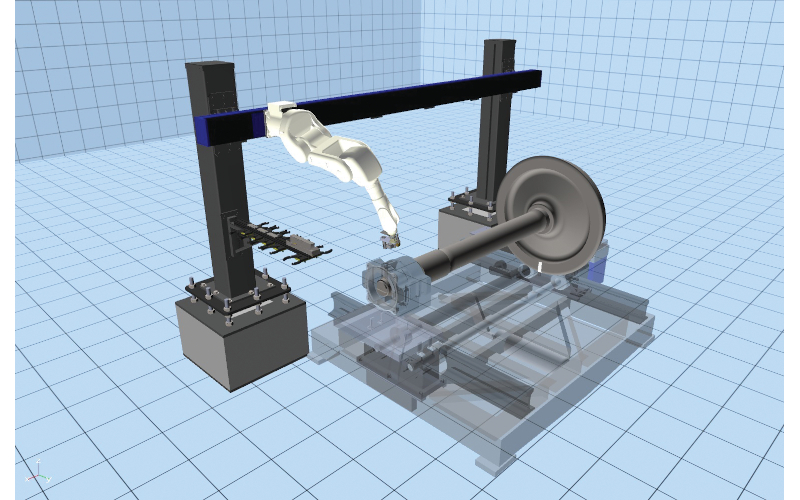

The laser scanning and flaw detection test bench ROBOSKOP VTM-5000 RAILWAY is used for a complete non-destructive testing cycle of wheelsets with any type of axes. Is used for the current, average or major repairs in accordance with the methodical requirements of Railway norms. It is also possible to adapt the ROBOSKOP VTM-5000 RAILWAY to any national or industrial testing requirements. A flexible system of settings allows forming any sequence of tested wheelset parts as well as the selective monitoring of individual zones.

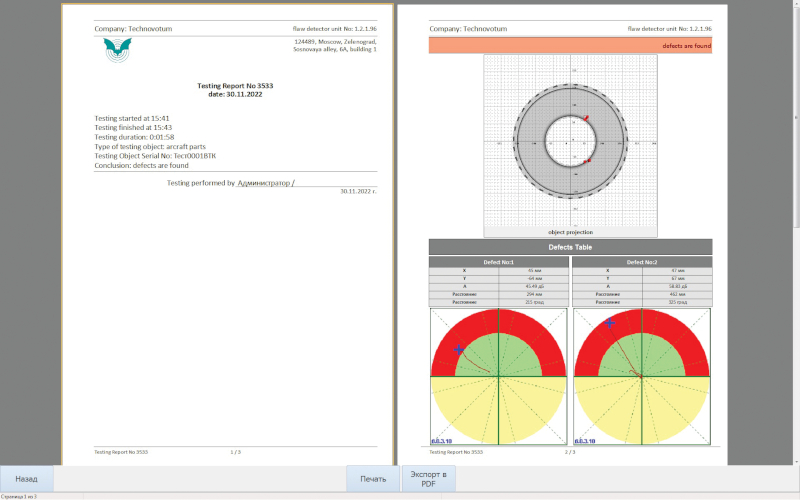

Ultrasonic and eddy-current testing methods are simultaneously available. The probes are automatically changeable during operation. Laser measurement of wheelset part geometry includes the mandatory measurement of each wheel surface's profile: rim, pre-rim zone, flange, wheel diameter and inter-band distance, additional analysis of roll surface to detect cracks and holes. All testing parameters and measurements are consolidated into one final protocol with visual and tabular deciphering, forming an electronic wheelset certificate.

ROBOSKOP VTM-5000 AEROSPACE

The stend of laser scanning and flaw detection ROBOSKOP VTM-5000 AEROSPACE is designed for non-destructive testing of composite materials, honeycomb structures and heat-shielding coatings, used in the space industry.

Read More …
ROBOSKOP VTM-5000 HELICOPTERS

The laser scanning and flaw detection bench ROBOSCOP VTM-5000 HELICOPTERS is designed for the non-destructive testing of polymer-composite materials used in aircraft constructions: glider elements, helicopter blades, honeycomb panels It is also applicable in wind power engineering, small-sized shipbuilding, pipe fitting production, etc. All tooling (laser scanner, sensors) selection and change processes are automated.

Read More …
ROBOSKOP VTM-5000 RAILWAY

ROBOSKOP VTM-5000 RAILWAY Is applied for complex non-destructive testing of railway rolling stock (trams, subway cars, freight and passenger cars, motor-rolling stock) wheelsets. A flexible system of settings allows to make any test sequence while using both mandatory and auxiliary (confirming) NDT methods for selective test of individual zones.

Read More …
FAZAR 01

SINGLE-CUT RAIL ULTRASONIC PHASED ARRAY FLAW DETECTOR (PA) Is used for continuous ultrasonic inspection of one track rail of railway rails of all types (U50, U65, U75, UIC53, UIC60, etc.) along the entire length and cross-section of rails points with semi-automatic decoding of defects,including control of rail base blades.

Read More …
FAZAR 02

DUBLE-CUT RAIL ULTRASONIC PHASED ARRAY FLAW DETECTOR (PA) Is used for continuous ultrasonic inspection of railway rails of all types (U50, U65, U75, UIC53, UIC60, etc.) along the entire length and cross-section of rails points with semi-automatic decoding of defects,including control of rails base blades.

Read More …
KALMAR 32+

MOBILE SINGLE-CUT RAILPHASED ARRAY FLAW DETECTOR (PA) Designed for acceptance or routine ultrasound control welded joints of electrocontact and alumothermite welding of railway railsof mainline and industrial tracks, as well as metro

Read More …
KALMAR 32+ RWE

STATIONARY RAIL FLAW DETECTOR ON PHASED ARRAY (PA) FOR RAIL WELDING ENTERPRISE (RWE) Designed for acceptance ultrasonic inspection of welded joints of electric contact welding of railway rails in the conditions of rail welding enterprises

Read More …
TOMOGRAPHIC 5M

MULTIFUNCTIONAL FLAW DETECTOR TOMOGRAPH Has built-in support for multidisciplinary scanners: tomographic, optical, railway purpose, etc. Such functionality is in demand by NDT laboratories for the control of welded joints, fitting pipe, various metal structures and composite materials.

Read More …
DAMI C-09

MECHANICAL IMPEDANCE ANALYSIS FLAW DETECTOR Is intended for detection of laminations, discontinuities, defects of lack-of-adhesion type and other continuity faults in multi-layer polymeric composite materials (PCM).

Read More …
